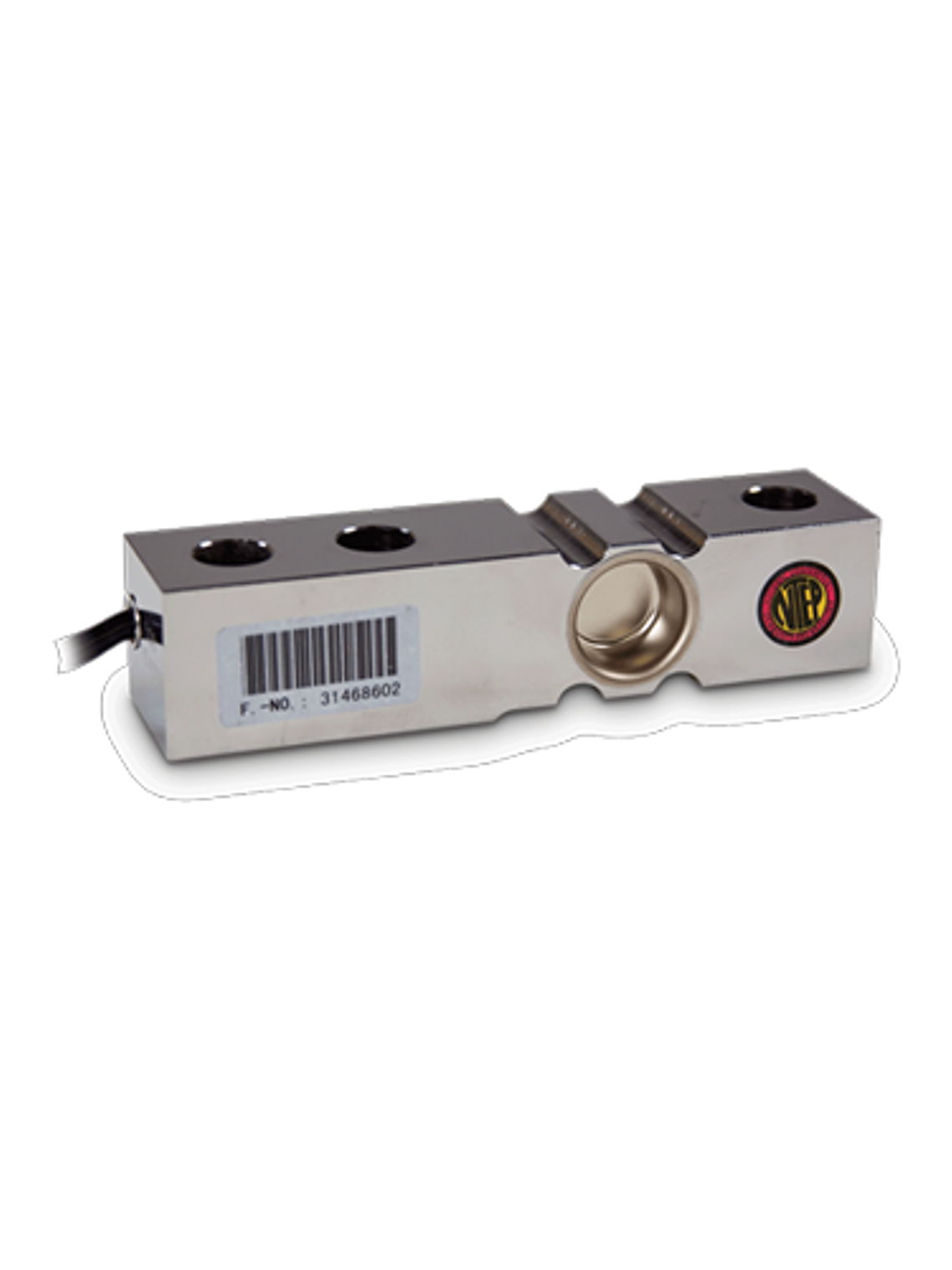

HBM H35 Stainless Steel, Single-Ended Beam Load Cell Celda de carga H35 - 2500 HBM 64877 1 HBM H35 Stainless Steel, Single-Ended Beam Load Cell Celda de carga H35 - 2500 HBM 64877 1
|

HBM H35 Stainless Steel, Single-Ended Beam Load Cell Celda de carga H35 - 2500 HBM 64877

Plazo de entrega:

Descripción

Celda de carga H35-2500 HBM -

CODIGO: 64877

Códigos de productos

CódigoDescripción

84818Load Cell,SEB H35-500- 20760 500lb 20ft HBM 3mv/v 350 OHM EW NTEP III 5M FM SST WS
64876Load Cell,SEB H35-1K 20760 1000lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67
64877Load Cell,SEB H35-2.5K 20760 2500lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67
64878Load Cell,SEB H35-4K 20760 4000lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67
64879Load Cell,SEB H35-5K 20760 5000lb 20ft HBM 3mV/V 350 OHM EW NTEP III 5M FM SST WS IP67

H35 Load Cell Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 ohm nominal

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
0.190 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited

Approvals:
FM
NTEP

H35 Load Cell Dimensions

Rated CapacityA1A2A3A4BCDEFGHI
lb/in
500 to 5,0001/2-20 UNF-2B0.620.530.531.211.195.121.003.000.502.851.12
